LDT 350 Short Production Logging Tool

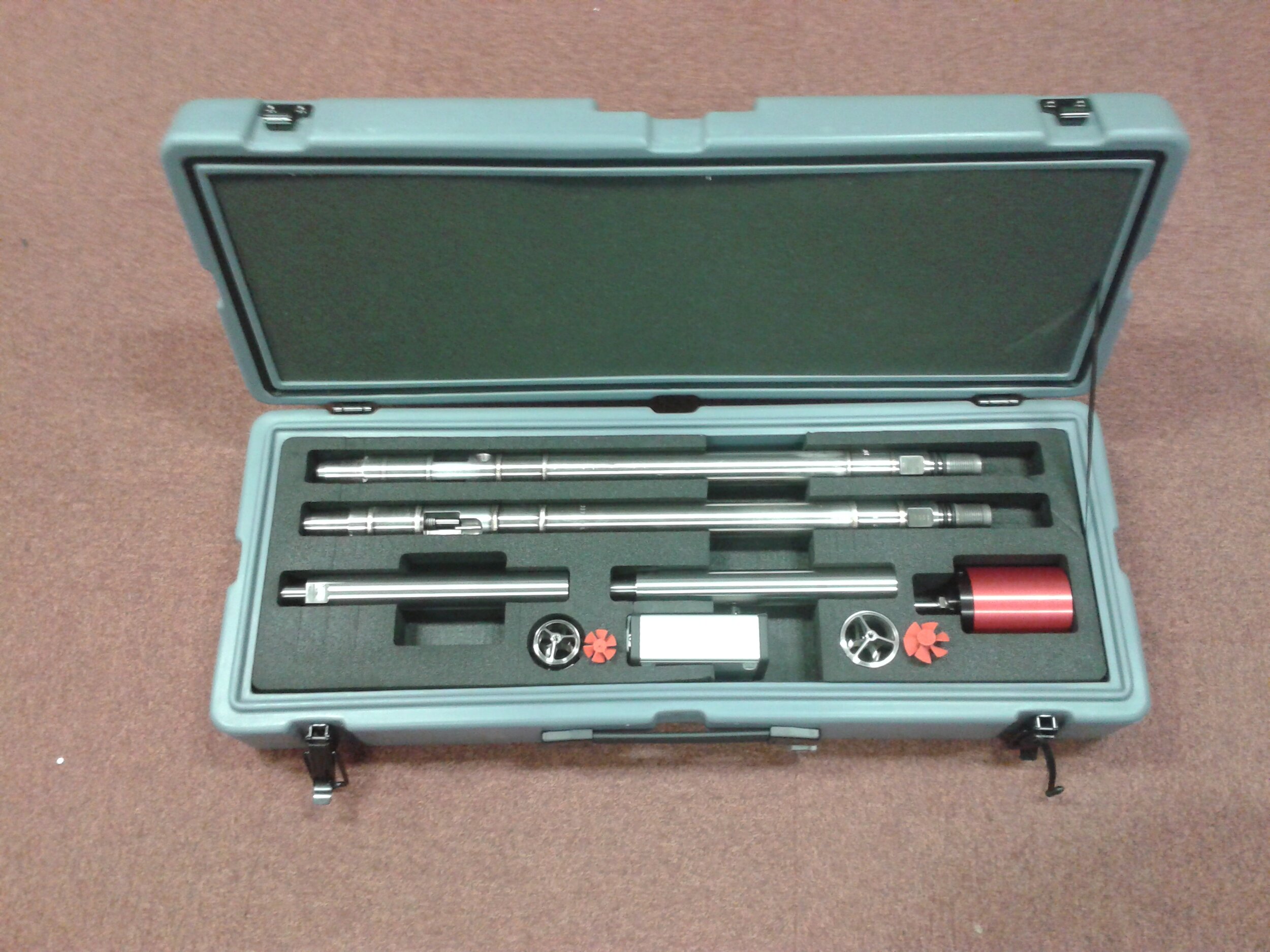

LDT kit.jpg

Short PL tools

Less than 3ft in length. 1-3/8”OD

Memory or SRO operation

Choice of flowmeter options including;
1-3/8” Continuous FM,
1-11/16” Continuous FM,
2-1/8” Continuous FM,
7” Collapsible Full Bore FM

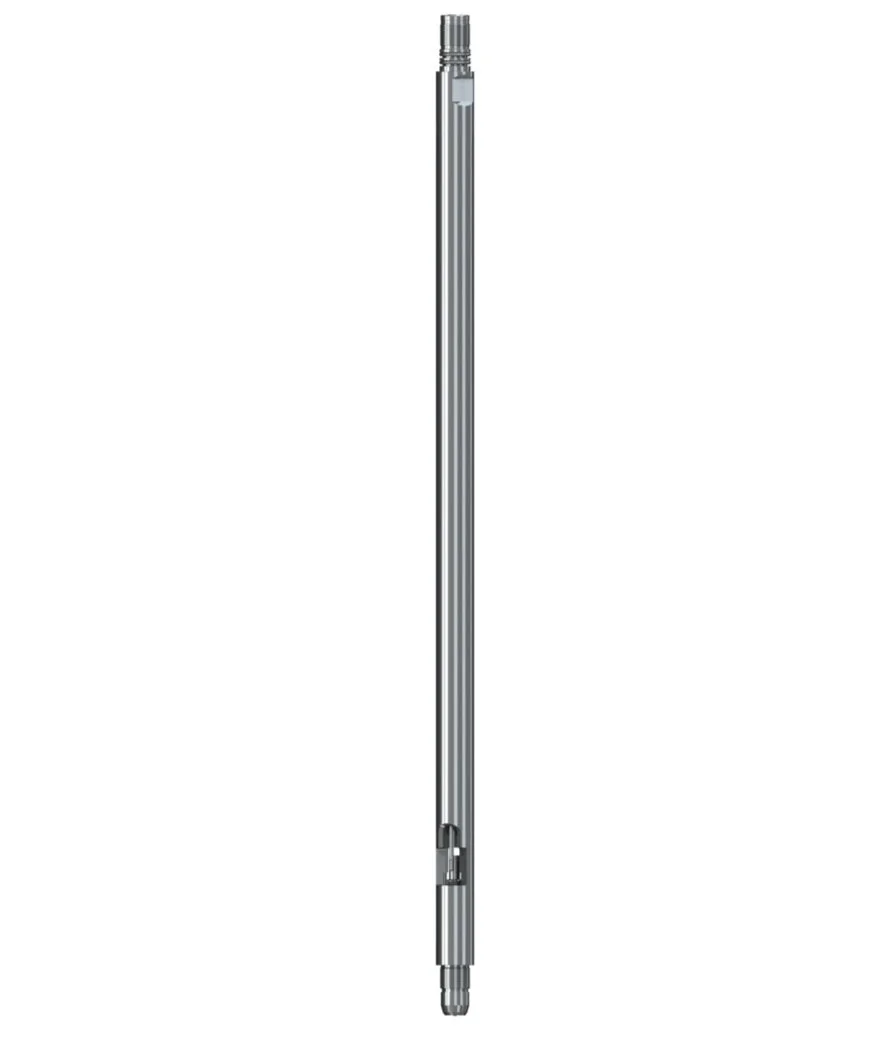

LTD 350.jpg

SPECIFICATION:

• OUTSIDE DIAMETER: 1 3/8”, 35mm

• LENGTH: 31”, 787mm

• TEMP RATING 350F, 175C

• AQUISITION: SRO/ MRO

• MEMORY: Flash Mem64 MB (58hrs logging)

• VOLTAGE: 7.6 V

• CURRENT: 55 mA

• BATTERY PACK: 2xLi D cells (112hrs logging)

• WEIGHT: 3kg

• MATERIAL: INCONEL 718

• PRESSURE RATING: 15,000 psi



LTD 350.jpg

LDT 350 sensors

• Collar Locator 1 - traditional coil based
• Collar Locator 2 - magnetic flux based

• Deviation

• Pressure sensor

• Slow response temperature sensor

• Fast response temperature sensor

• Density sensor

• Viscosity sensor

• Range of attachable Continuous or Full-bore flowmeters

Derived sensors include;
• Differential temperature
• Computed density

• The tool also includes memory and telemetry

• 10 data samples/second
